Ever seen a process drift for weeks, then blow up in one bad day? That’s the moment a Control chart in Excel earns its value. It plots results in time order, places a mean line at the center, and sets UCL and LCL guardrails so normal variation doesn’t get mistaken for real trouble.
When the data starts behaving oddly, the chart makes it visible. The sections below explain what it is, why teams rely on it, how to build one step by step in Excel, and where add-ins can save time.
Definition: A Control chart in Excel is an SPC-based visual used to track how a process performs over time. It plots data points in sequence, places the average as a center line, and applies upper and lower control limits (UCL and LCL) to show the expected range of routine variation. The goal is simple: quickly determine whether the process is stable or if something unusual is occurring.
The control limits define where common-cause variation normally exists. When points fall outside these boundaries or when repeated patterns appear, it often signals special-cause issues such as setup changes, equipment wear, or handoff problems. Excel works well for this analysis because it is widely available, flexible, and easy to adjust as the process or data set evolves.
Stable processes don’t happen by luck. A Control chart in Excel makes day-to-day stability visible using the numbers teams already collect. It becomes especially valuable when a quick signal is needed to stop a small drift before it turns into a real defect.
A Control chart in Excel tends to deliver value for a few practical reasons:
With clean input data, the view shifts from raw numbers to a clear signal. The chart helps teams respond faster, separate normal variation from meaningful change, and keep improvement efforts focused on the right problems.

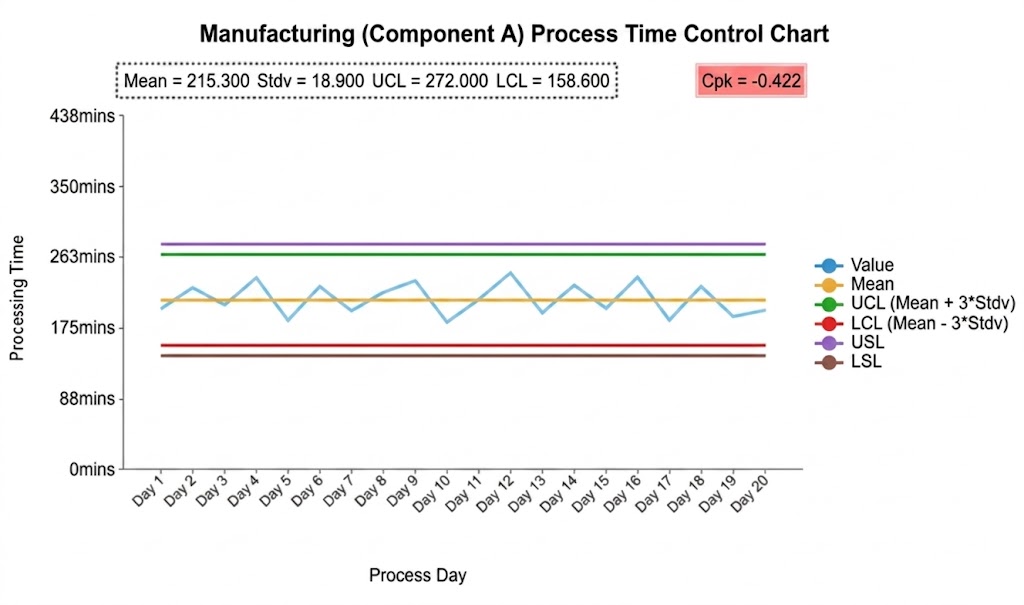

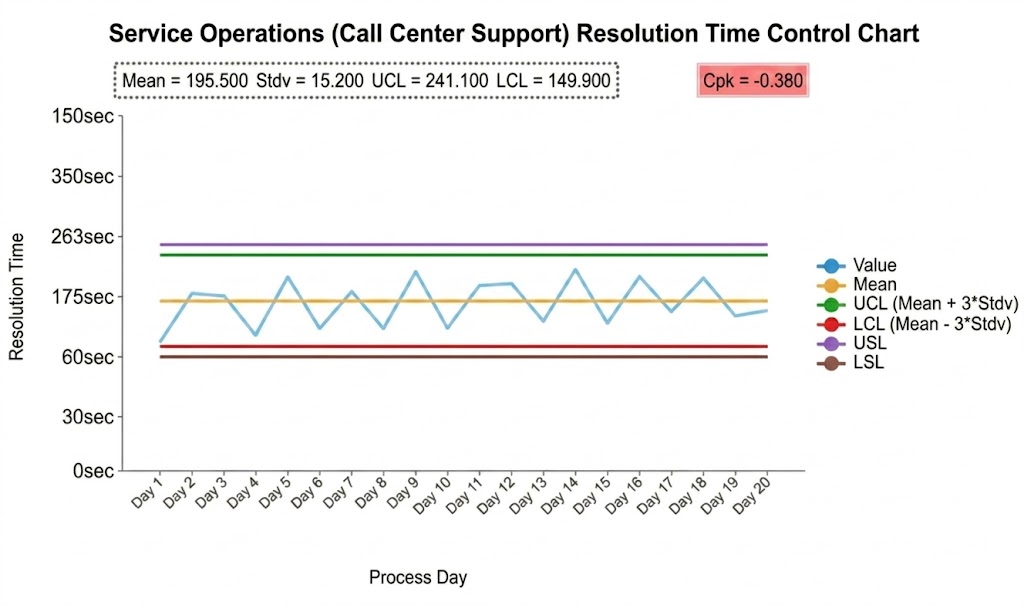

A Control chart in Excel applies far beyond factory floors. Any workflow that produces repeatable measurements, such as time, volume, defects, or delay,s can be monitored using the same approach.
All of these examples point to the same takeaway: the chart does more than record history. It exposes patterns that affect cost, throughput, and customer experience while there is still time to respond.
The manual build is simple, but it rewards consistency. A Control chart in Excel delivers the most value when formulas, limits, and formatting follow the same structure every time. The steps below walk through a standard Excel-based setup using built-in functions, resulting in a chart that is statistically sound and easy to maintain.
Start by laying out the values in clear columns. Use a time marker (date, batch, sample number) and the measured results in the next column. Control chart in Excel behaves better when the series is clean—no mixed units, no blank rows hiding in the middle.
Compute the mean of the measured values to set the center line. That average becomes the baseline for the chart, so it needs to reflect the same stable period being monitored. The Control chart in Excel looks convincing even with bad baselines, so double-check the range before moving on.
Formula used:
=AVERAGE(range)
Next, calculate the standard deviation with =STDEV(range) (or =STDEV.S in newer Excel versions). That value describes how widely the points are spread around the mean, and it feeds the limit calculations. Without it, the Control chart in Excel can’t place limits that actually reflect the process.
Set the limits using the mean plus or minus three standard deviations. UCL: =AVERAGE(range) + (STDEV(range) * 3). LCL: =AVERAGE(range) − (STDEV(range) * 3). In a Control chart in Excel, these lines act as guardrails around the mean and help flag behavior that’s outside normal variation.
Build the baseline chart from the dataset (Insert → Chart → Line). For anyone searching for how to add a chart in Excel, that menu path is the usual starting point. The mean and limit lines should be added as separate series, not as hand-drawn shapes.
Right-click the chart and choose Select Data, then add series for the mean, UCL, and LCL. If the question is how to select data for a chart in Excel, the key is matching each series name to the correct value range. Keep the ranges aligned so every line spans the same time axis. That discipline is also how to update a chart in Excel later, without breaking the series when new rows get added.
Clean up the presentation: tighten the title, label the axes, and place the legend where it doesn’t block the data. Use line styles that read well at a glance, such as dashed limit lines and a solid mean line. Convert the source range into an Excel Table so the chart refreshes when new data gets appended.
Excel can do the job by hand, but manual charts invite small mistakes: the wrong range, a copied formula, a limit line that stops early. Tools like ChartExpo cut that risk and speed up setup, especially when teams need advanced Excel charts without babysitting every detail. It’s a practical shortcut for building a Control chart in Excel when repetition and consistency matter.
ChartExpo’s upside usually comes down to a few simple wins:
When the calculations and styling are handled for you, attention stays on the pattern, not the plumbing. That’s especially useful at scale, where one small mistake can quietly ripple across dozens of sheets. Used well, ChartExpo keeps the process fast to build and easier to trust.
How to install ChartExpo in Excel?
ChartExpo works in both Microsoft Excel and Google Sheets, which helps when teams mix desktop files and shared spreadsheets. The point is speed: pick the chart, select the range, and get cool Excel charts and graphs without building every element from scratch.
Use the sample dataset below to see what the chart looks like once everything is wired up.
|
Process Day |
Processing Time |
| Day 1 | 195 |
| Day 2 | 198 |
| Day 3 | 202 |
| Day 4 | 210 |
| Day 5 | 205 |
| Day 6 | 198 |
| Day 7 | 190 |
| Day 8 | 202 |
| Day 9 | 208 |
| Day 10 | 215 |
| Day 11 | 225 |
| Day 12 | 212 |
| Day 13 | 205 |
| Day 14 | 190 |
| Day 15 | 208 |
| Day 16 | 218 |
| Day 17 | 212 |
| Day 18 | 205 |
| Day 19 | 185 |
| Day 20 | 220 |
Key Insights
Building this Excel chart is only half the work. Reading it well is where teams earn the benefit, because the goal is spotting real signals without chasing noise. A Control chart in Excel is meant to trigger questions at the right time, not create busywork.
Look for these signals when reviewing the plot:
Once these patterns are understood, teams can choose when to intervene and when to let the process run. Overreacting is expensive. Ignoring real signals is worse.
Excel is flexible, but it isn’t a statistics platform. Manual charts can work well, yet the approach starts to creak as the dataset grows and the audience widens.
None of that makes Excel unusable. It just means scale needs discipline, like locked ranges, reviews, or a control chart template in Excel that standardizes the setup. Without that, reliability drops as complexity rises.
Excel can produce solid charts, but it often demands more manual work than teams expect. The comparison below highlights where a plain workbook differs from a ChartExpo-assisted approach.
| Feature | Control Charts in Excel | ChartExpo |
| Setup effort | Built by hand with formulas and repeated clicks | Generated with the add-in in a few steps |
| Control limit calculation | Limits computed manually | Limits computed automatically |
| Risk of errors | More room for typos and range mistakes | Less manual entry, fewer slip-ups |
| Visualization quality | Standard Excel look | Cleaner, more presentation-ready visuals |
| Scalability | It can get slow and fragile as rows grow | Stays workable as data expands |
| Updates with new data | Often needs range edits when new rows appear | Refreshes when new rows are added |
| Ease of interpretation | Takes more effort to interpret consistently | Easier for most readers to interpret |
ChartExpo shifts the work from manual setup to repeatable automation. Instead of retyping formulas and tweaking lines, the chart is generated in a consistent format with a few clicks. That’s helpful when multiple processes need the same treatment.
ChartExpo for Excel reduces human error by limiting hand-entered formulas and one-off formatting. ChartExpo for Google Sheets offers a similar workflow for teams that live in shared, cloud-based files.
Less time building charts means more time acting on what the pattern shows. When the setup is repeatable, reviews move faster, and improvement work stays focused. Fewer reworks. Fewer debates.
Yes. Excel can build it with formulas and line charts, and a Control Chart template in Excel can speed the setup. The tradeoff is that the workflow stays mostly manual unless an add-in is used.
To create a moving range:
It’s essentially a standard control chart with the focus on variation between consecutive measurements.
A Control chart in Excel is a practical way to monitor performance and spot variation before it becomes a real problem. With the mean, standard deviation, and control limits in place, it’s easier to tell ordinary fluctuation from a signal that needs attention. Excel’s flexibility also makes updates simple when new rows arrive. Just don’t skip data checks, or the picture lies. Lock key cells.
Add-ins like ChartExpo can make the charts cleaner and faster to produce, especially when many processes need the same view. Whether the metric is quality, sales, or cycle time, a well-built chart supports steadier operations, clearer decisions, and ongoing improvement. It also helps keep formatting consistent, so reviews don’t turn into debates.
