Have you ever felt stuck trying to figure out what’s really causing a problem? A Pareto chart can cut through the noise and point you toward the answers. This simple yet effective tool helps you see what’s most important, so you can focus on fixing what matters.
A Pareto chart isn’t just another graph. It’s a way to prioritize your efforts by identifying the few causes that have the biggest impact.
Whether you’re managing a team, improving a process, or analyzing customer feedback, this chart shows you where to start.
The magic of a Pareto chart lies in how it combines clarity and action. By arranging data in descending order and highlighting cumulative trends, it helps you spot the factors that demand immediate attention.
It’s a tool that turns data into decisions, giving you a clear path forward.
First…

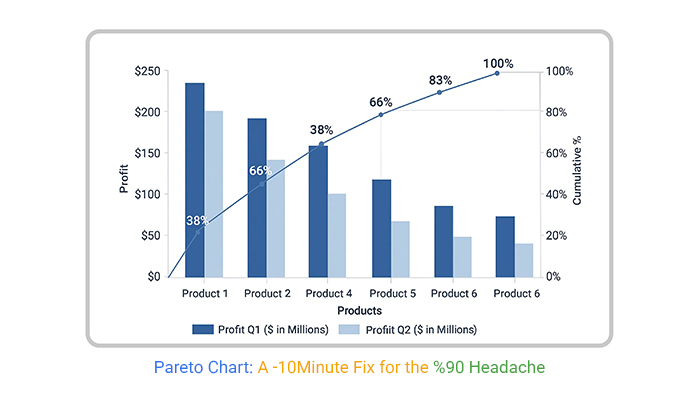

Definition: A Pareto chart is a visual tool used to identify and prioritize the most significant factors in a dataset. It combines a bar graph, which ranks individual categories from largest to smallest, with a line graph that shows their cumulative contribution.
This dual representation makes it easier to see which factors are most impactful and where efforts should be directed for improvement. Widely used in quality control, business analysis, and project management, a Pareto chart simplifies complex data and helps focus on what matters most.
The main features of a Pareto Chart include:
Unlike other charts and graphs, a Pareto Chart combines bars and a line graph to provide two types of information: individual values and cumulative totals. This dual insight makes it unique and especially useful for pinpointing the most significant issues that need attention.
Picture this: a company’s customer service team is overwhelmed with complaints. It’s chaos, and they don’t know where to focus first. A Pareto chart steps in as their guide. This simple visual shows that majority of complaints come from just a few recurring issues. Instead of chasing every small problem, the team targets those top offenders and sees big improvements fast. That’s the Pareto principle in action.
The chart lays it all out clearly. Bars show the frequency of issues, ranked high to low. A line climbs alongside, adding up percentages to highlight the “vital few” that cause the most trouble. It’s like having a spotlight on the problems that matter most. Teams don’t waste time fixing the wrong things—they work smarter.
Businesses use this tool to tackle challenges across the board. In manufacturing, it pinpoints defects. In marketing, it spots where campaigns fall flat. Even in personal productivity, it reveals which habits hold you back.
While both Pareto charts and histograms are used to display data, they serve different purposes. A histogram shows the distribution of data across different intervals, helping identify patterns such as skewness or bimodality.
On the other hand, a Pareto chart prioritizes causes of a problem, making it easier to tackle the most significant issues first. This prioritization is absent in histograms.
A Pareto table lists the categories and their corresponding values in descending order, often including a cumulative percentage.
A Pareto diagram uses visual analytics to present this data in a chart, making it easier to identify which categories have the most significant impact. While both tools are based on the same data, the diagram offers a visual representation that is more effective for quick analysis and decision-making.
Picking the right categories is like setting up the pieces on a chessboard. Each category should represent a distinct type of problem or issue.
For example, if you’re analyzing customer complaints, categories might include delivery times, product quality, or customer service. Make sure these categories are neither too broad nor too specific. If you have too many small categories, the bigger picture gets lost. Too few, and you miss out on important details.
Let’s break down the steps. Start with a simple sheet of graph paper or a whiteboard. Draw the horizontal line (x-axis) and the vertical line (y-axis). Label the x-axis with your categories and the y-axis with the frequency of the issues.
Next, fill in the bars. Each bar should represent the frequency of issues for each category, arranged from most frequent to least frequent from left to right. This visual setup will quickly show you where the biggest problems lie.
After your bars are up, it’s time for the Pareto line. This line adds a cumulative percentage of the issues, helping you see which categories contribute most to the problem.
Start from the top of the first bar, then add each category’s percentage to the last, drawing a point above each bar to mark the cumulative total. Connect these points, and voilà, your Pareto line swoops across the chart, showing you the important problems that need your attention first.
Whether you prefer working online or offline, there are Pareto chart makers to suit every preference. Online tools are great because you can access them from anywhere and often collaborate with team members in real-time. Offline tools, on the other hand, might offer more advanced features and the ability to work without internet connectivity. Both options typically provide a range of customization features to tailor your chart to specific needs.
Advanced Pareto graph makers offer features that go beyond the basics. Expect functionalities like interactive elements, where you can click on parts of the chart to drill down into data. Some tools also provide automated insights, highlighting trends and outliers without manual input.
These features save time and can reveal deeper insights into your data, making your analysis more robust and actionable.
The following video will help you to create a Pareto Chart in Microsoft Excel.
The following video will help you to create a Pareto Chart in Google Sheets.
The next step is collecting your data. Aim for a comprehensive dataset that represents the problem accurately. If you’re looking at customer complaints, how far back should you go? A month? A year?
Decide on a timeframe that gives you enough information without overwhelming you. When collecting data, consistency is key. For example, if you’re recording product defects, use the same criteria for what counts as a defect throughout the data collection period.
This consistency will pay off when you start analyzing and interpreting data, helping you extract valuable insights and make data-driven decisions.
With your data in hand, it’s time to sort and categorize it. This step is crucial because it sets the stage for creating your Pareto diagram. Start by sorting the data into categories.
If you’re dealing with customer service issues, categories might include ‘late delivery’, ‘poor product quality’, or ‘incorrect billing’. Sort each issue into the appropriate category. The goal here is to see which categories have the most entries. This sorting process helps identify the most significant problems—the ones you should tackle first.
Finally, use a Pareto table to structure your analysis. A Pareto table lists problems or issues in order of frequency, from most to least common. It often includes a cumulative percentage to show the relative impact of each problem.
To set up your table, list your categories down the left side. Next to each category, record the number of occurrences. Then, calculate the percentage of each category relative to the total. Lastly, add a cumulative percentage column to help visualize what problems are contributing most to the issue at hand.
This table will guide your decision-making and highlight where to focus your efforts for maximum impact.
Diving into a Pareto diagram, the bars and the line each tell a story. The bars, arranged in descending order, show the frequency of issues, from most to least common. They help you see the big players, the main culprits of your headaches.
Now, the line graph, which usually climbs from left to right, serves as your insight meter. When this line jumps sharply, it’s signaling where you should focus your efforts for the most effective results. It’s about smart work, not just hard work.
The slope of the Pareto line can tell you a lot about the nature of your issues. A steep line early in the chart is like a wake-up call—it tells you that a few issues cause most of your headaches. Knock these out, and you’ll likely feel a big relief.
On the other hand, a flat line suggests that your problems are more evenly spread out. It’s a different kind of challenge, like smoothing out a bumpy road rather than patching a few big potholes. Each scenario requires a different strategy, but both lead you to a smoother ride.
In project management, Pareto diagrams are vital tools. They assist in identifying the critical few tasks that can significantly impact a project’s success.
By focusing on these key areas, project managers can efficiently allocate time and resources, ensuring that the most beneficial tasks are completed first. This not only streamlines project timelines but also enhances overall project quality.
Quality control teams use Pareto analysis to root out the primary causes of product defects. By analyzing data from production lines and identifying patterns, teams can focus on correcting the major issues that affect product quality.
This targeted approach not only improves product standards but also reduces time and cost spent on less significant problems, making the quality control process more effective.
In healthcare, healthcare analytics with Pareto charts helps address frequent patient complaints and common treatment errors. This analysis aids in prioritizing healthcare improvements, enhancing patient satisfaction, and reducing clinical errors.
In retail, these charts analyze customer feedback to focus on the most mentioned issues, whether it’s checkout speed or product availability, thus directly improving customer shopping experiences.
When values are tied in a Pareto chart, it can be tricky to decide how to place them since their order can affect the analysis. A practical approach is to use a secondary metric to break ties.
For example, if two problems occur with the same frequency, prioritize the one that has a higher cost impact. This method ensures that the chart accurately reflects the priorities for problem-solving.
Scaling issues in Pareto diagrams often occur when the data spans a wide range. This can make it hard to see smaller categories clearly. To fix this, consider using a logarithmic scale for the frequency axis.
This adjustment can help in displaying both large and small numbers more effectively, making it easier to interpret all categories accurately. Additionally, ensure your charting tool is set to handle large numbers seamlessly, avoiding any cutoffs or misrepresentations.
Normal Pareto charts use simple counts to identify major issues. A weighted Pareto chart, however, takes this a step further by assigning a weight to each issue based on its severity or cost.
This method doesn’t just count how often problems occur; it also considers how much each problem impacts your project or business.
For instance, if a manufacturing error costs $1,000 to fix and another costs just $100, the more expensive issue is given more weight, making it easy to see which problems are truly draining your resources.
Imagine you manage two teams. Both deal with customer complaints, but you suspect one team is performing better than the other. By creating a comparative Pareto diagram, you can lay one team’s data over the other’s.
This visual comparison will quickly show which team has the most frequent complaints and the types of complaints most common to each team. Such a diagram not only highlights performance differences but also directs managers on where to focus improvement efforts.
What if you could watch how issues change over time? A time-based Pareto chart does just that. Instead of looking at a static picture, this dynamic chart updates to reflect data over days, weeks, or months. It’s perfect for spotting trends, like a recurring issue that peaks every few months.
This insight allows businesses to anticipate and prepare for problems before they happen, instead of always being in reaction mode.
In manufacturing, quality control is a must. Imagine a factory that produces electronic components. The managers use a Pareto chart to pinpoint the most common defects in their products. They gather data from the production line, noting each type of defect found over a month.
The Pareto chart reveals that soldering errors and component misplacements top the list. This insight allows the team to focus on improving soldering techniques and the accuracy of component placement, thus reducing the defect rate significantly.
Consider a call center handling customer service for a large retail company. By using a Pareto chart, the team analyzes the reasons behind customer calls. They find out that most complaints are about delayed shipping and product availability.
This data visualization helps the management to prioritize efforts in enhancing their inventory management system and reviewing their shipping logistics, aiming for fewer complaints and improved customer satisfaction.
In financial analysis, a Pareto chart can be a tool to identify major cost drivers in a company’s budget. Let’s say a corporation is reviewing its annual expenditures. By applying a Pareto chart, they discover that most of costs come from supplier expenses and employee salaries.
With this knowledge, the finance team can negotiate better deals with suppliers or optimize workforce management to control costs more effectively, ensuring financial stability and operational efficiency.
To ensure your Pareto chart is as clear as possible, stick to a simple color scheme. Use different shades or colors to distinguish between categories, but keep the variations minimal.
Why? Because too many colors can distract and confuse the viewer. The primary focus should be on the bars and the line graph, which represent the frequency and cumulative percentage of issues, respectively.
The chart’s scale is another critical factor. The left vertical scale (y-axis) should represent the frequency of occurrences, and it should be easy to read from a distance. The right scale, which shows the cumulative percentage, should align with the left to avoid any visual confusion.
Always prioritize clarity in the title and axis labels. A clear, descriptive title and well-labeled axes remove ambiguity and make the chart’s purpose immediately clear. This is especially important when sharing your findings with stakeholders who might not be as familiar with the data as you are.
The ideal number of categories in a Pareto diagram should not exceed 10. Why? Because the goal of a Pareto chart is to highlight the most significant issues.
More than 10 categories can dilute the focus, making it harder to identify the key problems. If you find yourself with more than 10 categories, try grouping smaller issues into a single ‘other’ category. This keeps the chart impactful and focused on areas that require the most attention.
Remember, the Pareto Principle, or the 80/20 rule, suggests that 80% of problems are often due to 20% of causes. Keeping the categories limited and focused aligns with this principle and enhances the chart’s effectiveness in problem-solving scenarios.
Integrating Pareto analysis into business strategy begins with regular review and assessment. Use Pareto charts during strategic meetings to highlight areas needing improvement. This visual tool can help prioritize issues based on their impact on operational efficiency and customer satisfaction.
Incorporate Pareto analysis into your continuous improvement programs. For instance, use it to track the effects of changes implemented in manufacturing processes or customer service enhancements. By regularly reviewing these charts, teams can see which changes are working and which aren’t, allowing for dynamic adjustments to strategies.
Finally, encourage departments across your organization to adopt Pareto analysis in their daily operations. Whether it’s HR, finance, or operations, each department can use this tool to identify and focus on solving their most pressing issues, aligning departmental goals with the overall business strategy.
In fast-paced environments where data updates continuously, a static Pareto Chart falls short. Enter the Dynamic Pareto Chart. This variation updates in real time, reflecting ongoing changes in data. It’s particularly useful in manufacturing or service industries where immediate data analysis can lead to quick decision-making and significant improvements.
Sometimes, raw numbers don’t cut it. A Pareto table shows you the main contributors to a problem, but pairing it with a stacked bar chart? That’s next-level. It lets you see patterns and priorities in one glance.
Imagine this: You’re analyzing product returns.
The table shows return reasons like “defective,” “wrong size,” and “damaged.” A stacked bar chart adds depth by breaking those reasons down further—maybe by product category or location.
Here’s how you do it:
This combo shows not just what’s happening but also where and why. For instance, most defective returns might come from one supplier. Or maybe damaged items spike during winter months.
Pairing these tools isn’t about complicating things—it’s about clarity. You tackle big-picture issues without losing sight of smaller patterns.
In strategic planning, Pareto Diagram PMP (Project Management Professional) utilizes the principle that majority of the project’s success comes from minority of the work. This tool is used to identify and prioritize the tasks that will have the most significant impact on the project’s outcomes.
Start by listing all tasks and challenges involved in the project. Rate each task based on its impact and the effort required. Tasks that promise the greatest impact with the least effort are your “vital few.”
This prioritization matrix helps project managers allocate resources efficiently—optimizing time, budget, and manpower on tasks that swiftly propel the project toward its strategic goals.
This not only streamlines the project but also aligns it more closely with broader business objectives, ensuring that every effort made is an effective step towards the end goals.
Resource allocation can often feel like a balancing act. A Pareto graph offers a straightforward way to see which tasks or departments are consuming the most resources but are not as critical to business success.
For instance, if a company spends a large portion of its budget on a department that only contributes to a small part of its income, a Pareto graph will highlight this discrepancy.
By analyzing a Pareto graph, managers can shift resources from less critical tasks to those that drive the most value, optimizing both human and financial resources. This method ensures that the most valuable parts of the business are well-supported, enhancing overall efficiency and productivity.
In a dynamic business environment, conditions change rapidly. Continuous monitoring with automated updates to your Pareto charts ensures that you always have the latest data to make informed decisions.
Automation tools can track data across various metrics and KPIs, updating the Pareto chart in real-time. This provides continual insight into the most pressing issues as they develop, without the need for manual data entry and analysis.
This constant update allows businesses to react quickly to emerging problems before they escalate, maintaining operational efficiency and customer satisfaction. It also helps in maintaining a lean process by immediately identifying and addressing waste and non-value-added activities, keeping the business agile and competitive in a fast-paced market.
A Pareto chart displays data in a way that highlights the most significant factors contributing to a particular outcome. It consists of a bar graph that shows individual categories in descending order of importance and a line graph that tracks their cumulative contribution. This combination makes it easy to see which categories have the largest impact and helps identify where to focus your attention for improvement. By providing a clear visual summary, a Pareto chart simplifies decision-making and helps prioritize actions based on data.
Creating a Pareto chart with ChartExpo is straightforward and saves time. First, gather your data, ensuring it includes categories and corresponding values. Open ChartExpo in your preferred application, such as Excel or Google Sheets, and select the Pareto chart option from the available templates. Input your data, and ChartExpo will automatically generate the chart, complete with a bar and cumulative line graph. You can easily customize colors, labels, and titles to match your needs. Once done, review the chart for accuracy and use it to analyze your data effectively.
A Pareto chart is widely used to prioritize issues, analyze problems, and make data-driven decisions. Businesses often rely on it to identify the top causes of defects, customer complaints, or delays, focusing their resources on high-impact areas. It’s also valuable in project management, manufacturing, and service industries, helping teams pinpoint inefficiencies and improve processes. By visualizing the biggest contributors to an outcome, it simplifies complex data and ensures efforts are directed where they matter most.
A Pareto chart simplifies decision-making by showing you what matters most. It highlights the few factors that drive the biggest results, helping you focus your time and resources where they’ll have the most impact.
Whether you’re managing a team, improving processes, or analyzing trends, this tool gives you clarity and direction.
By combining clear visuals with actionable insights, a Pareto chart turns data into practical solutions. It’s not about overloading you with information—it’s about making things manageable and effective.
When you know where to focus, you can achieve results faster and with less effort.
The Pareto chart isn’t just a tool; it’s a method to help you see what’s holding you back and where you can excel. Use it to prioritize, act, and improve in ways that truly matter.
Start using it today, and let the results speak for themselves.
