Imagine wanting to see the full story of your data, from its highs and lows to everything in between, all at once. Box Plots do just that, serving up the essence of your data on a silver platter.
They’re not here to replace your beloved graphs but to complement them; they add depth to your data analysis.
So, whether you’re a novice dipping your toes into the data visualization ocean or an intermediate user looking to up your game, stick around.

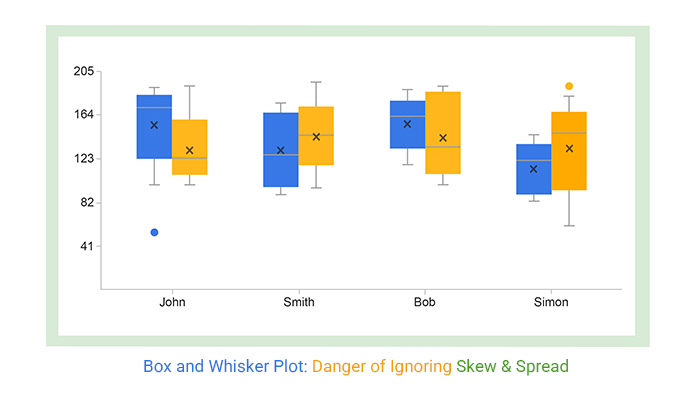

We’re diving deep into the world of Box and Whisker Plots, unraveling their mysteries, and discovering how they can bring clarity to your data analysis.
Definition: A Box and Whisker Plot, also known as a Box Plot, is a graphical representation of data distribution using quartiles.
It is a standardized way of displaying the dataset based on a five-number summary: minimum, first quartile (Q1), median (Q2), third quartile (Q3), and maximum. Whether in a vertical or horizontal orientation, it provides a comprehensive snapshot of the data’s spread.
Imagine you’re comparing your test scores with classmates. Instead of listing every single score (yawn), you use a chart that shows you the range, the average Joe score, and who’s the class Einstein or, well, not so Einstein. You might also use a Dot Plot to visualize how frequently each score appears. That’s a Box and Whisker Plot for you!
You can get the whole picture in one glance. Instead of scrolling through pages of numbers, you see who’s acing it, who’s just getting by, and who’s… well, let’s just say having a tough time.
And when you’re comparing different groups, like how you did on tests across the year, it’s like having a scoreboard showing the ups and downs without needing a magnifying glass.
Imagine you’ve got a bunch of numbers. The median is like the middle sibling, not too high, not too low, just comfortably in the middle of the sorted list. Then you’ve got the quartiles, Q1 and Q3, dividing your data into four equal parts. Q1 is the middle of the lower half, and Q3, you guessed it, is the middle of the upper half.
Next up, we have the whiskers. These lines stretch from the quartiles to the max and min values in your data, excluding any outliers. They give you a sense of how spread out your data is kind of like how wide a cat can stretch its whiskers.
Speaking of outliers, these are the data points that decided to go on an adventure far away from the rest. Box Plots highlight them so you can ponder why they didn’t stick with the crowd. Maybe they’re just trying to be unique.
Think of the inner fences as the data’s bouncers, keeping a watchful eye for mild outliers. To find them, we do a bit of math gymnastics. Ready? Take the IQR, multiply it by 1.5, and voila ”“ you’ve got the magic number. Subtract this from Q1 for the lower inner fence and add it to Q3 for the upper inner fence.
Now, onto the outer fences ”“ the wilderness beyond the inner sanctum. Here, the calculation’s spirit remains the same, but we swap our multiplier from 1.5 to a more adventurous 3. This stretch is where the extreme outliers throw their data parties, often hinting at significant deviations or juicy stories within your dataset.
In data analysis clarity is king. The Box Plot reigns supreme, offering a clear view of the data’s heart””its central tendency, spread, and outliers””all in a single, coherent snapshot. It’s like having a bird’s-eye view of a forest, seeing both the density of the trees and the clearings in one glance.
Those data points that dare to dance away from the crowd? Box Plots shine a spotlight on them. Whether they’re the whispers of innovation or the echoes of error, they won’t go unnoticed. It’s akin to finding hidden gems in a vast desert, each one holding a tale begging to be told.
When it’s time to line up your datasets for a beauty contest, the Box Plot makes it a breeze. Side by side, they reveal not just who’s the fairest but who’s hiding secrets in their spread, who’s leaning a bit too much to the left or right, and whose outliers are crashing the party. It’s the data equivalent of a lineup, each contestant revealing their truths and flaws.
Don’t let its minimalist design fool you. The Box Plot is a deep well of insights, offering a nuanced understanding of your data without overwhelming you with complexity. It’s the sage of data visualization, imparting wisdom in simplicity, and ensuring that you’re equipped to make informed decisions without getting lost in the weeds.
Ever stared at a Box Plot and wondered what story it’s trying to tell you? Don’t fret; you’re not alone. Today, let’s crack the code of Box Plots together, making them as easy to understand as your favorite comic strip.
Here’s the scoop on what you can glean from these clever charts:
To understand the 5-number summary, let’s consider a coffee shop data scenario.
120, 150, 180, 200, 230, 250, 280, 300, 320, 350
Step 1: Order the data from smallest to largest.
The data is already ordered: 120, 150, 180, 200, 230, 250, 280, 300, 320, 350
Step 2: Find the median (the middle value that divides the dataset into two halves).
With 10 data points, the median is the average of the 5th and 6th values: (230 + 250) / 2 = 240
Step 3: Find the quartiles (values that divide the data into quarters).
Step 4: Complete the five-number summary by finding the min and the max.
This summary tells us about the coffee shop’s daily sales distribution. The median daily sale is $240, showing that half of the days have sales above this amount and half below. The range between Q1 and Q3 (165 to 310) represents the middle 50% of the data, indicating the bulk of daily sales figures fall within this range. The minimum and maximum values give us the spread of the data, highlighting the lowest and highest daily sales recorded.
To find the Interquartile Range (IQR), you first need to arrange your data in ascending order. Then, you need to find the values of the first quartile (Q1) and the third quartile (Q3). The IQR is the difference between Q3 and Q1.
Here’s a step-by-step guide to finding the IQR:
Step 1: Arrange the Data: Arrange your dataset in ascending order from smallest to largest.
Step 2: Calculate the Median: Find the median of the dataset. If the number of data points is odd, the median is the middle value. If the number of data points is even, the median is the average of the two middle values.
Step 3: Identify Quartiles:
Step 4: Calculate IQR: Subtract Q1 from Q3 to find the interquartile range (IQR).
Here’s a mathematical representation of how to calculate Q1, Q3, and IQR:
Let’s illustrate this with an example:
Consider the dataset: 3, 5, 7, 8, 9, 11, 15, 17, 20, 22
So, the Interquartile Range (IQR) for this dataset is 10.
First off, Box and Whisker Plot, or Box Plot for short, is a versatile visualization. It packs a ton of info into a tiny space. Imagine trying to understand the highs, lows, and everything in between of your data. A Box Plot has got you covered, showing you the spread and skewness of your data at a glance.
Ever felt like something’s off but can’t pinpoint what? Box Plots shine a spotlight on outliers – those data points that stick out like a sore thumb. These oddballs could be game-changers or just flukes, but you won’t miss them with a Box Plot.
Do you have multiple data sets? No problem. Box Plots line up side by side, making it a breeze to compare distributions. It’s like having x-ray vision, seeing through the data to the stories underneath.
And here’s the kicker ”“ they’re not just about the big picture. Box Plots break down the data into quartiles, giving you the insider scoop on the median, the interquartile range (IQR), and those pesky outliers. It’s the detective work of data analysis made easy.
Now, you might be thinking, “This sounds great, but there’s got to be a catch.” Truthfully, Box Plots do have their kryptonite. They’re not great with intricate details of distribution, like multimodality (yeah, that’s a word). But for a quick, dirty, and incredibly insightful look at your data, they’re hard to beat.
You can create a Box and Whisker Plot in your favorite spreadsheet. Follow the steps below to create a Box and Whisker Plot.
The following video will help you to create a Box and Whisker Plot in Microsoft Excel.
The following video will help you to create a Box and Whisker Plot in Google Sheets.
The line inside the box represents the median value of the dataset.
The lower quartile (Q1) is the median of the lower half of the dataset, while the upper quartile (Q3) is the median of the upper half.
IQR is the range between Q1 and Q3. It gives an idea of the spread of the middle 50% of the data.
If one whisker is longer than the other, or if the median is not centered in the box, it indicates skewness in the data.
Outliers are data points that fall significantly beyond the whiskers. They may indicate errors in data collection or interesting phenomena in the data.
Let’s explore some scenarios where a Box and Whisker Plot isn’t just useful; it’s a game-changer.
Imagine you’re at work, and it’s review season. Everyone’s either puffing up their chests or sweating bullets. A Box and Whisker Plot can slice through the drama. By plotting performance ratings, you instantly see who’s killing it, who’s just showing up, and, importantly, the outliers. Is Kevin from Accounting a genius, or is he just good at looking busy? Time to find out.
Sure, you could average your customer satisfaction scores, but if you want to see the real tea, a Box and Whisker Plot will spill it. It shows you the range of responses, from the delighted emojis to the digital eye-rolls. This way, you don’t just pat yourself on the back for a “mostly satisfied” average while ignoring that one dude who rated you a 1 because his package arrived 17 seconds late.
Supply chains are as complex as a soap opera plot. Use a Box and Whisker Plot to understand the variability in your delivery times or supplier quality. It’s like turning on the lights at a surprise party; suddenly, everything (and everyone) is painfully visible. You’ll see which suppliers are consistently late, opening the door to those “It’s not me, it’s you” conversations.
Teachers, imagine plotting your students’ test scores and seeing the full distribution at a glance. It’s like having educational X-ray vision. You can identify not just the average Joe but also spot the under-the-radar achievers and the needs-a-little-nudge group. It’s personalized teaching, backed by cold, hard data.
Website owners, ever wonder if your site’s traffic is healthy? A Box and Whisker Plot of session durations or page views can separate the wheat from the chaff. You’ll see how many visitors truly engage with your content versus those who bounce faster than a rubber ball on concrete. Plus, is there any suspiciously superhuman activity? Probably bots. Time to beef up security.
First up, medians. That line in the middle of the box? That’s your median, the middle value of your data. It’s like the center of gravity for your numbers. Comparing medians across Box Plots is like comparing the heights of basketball players ”“ it tells you who’s towering over the competition and who’s, well, not so much.
Next, let’s eyeball those interquartile ranges (IQRs) – the lengths of the boxes themselves. The IQR is how spread out your middle 50% of values are. A longer box? More spread out. It’s like comparing the wingspans of those basketball players.
And those whiskers? They show you the reach of your data, from the lowest to the highest values, excluding outliers. A Box Plot with long whiskers is like a player with a great reach – it’s got data points far from the median.
Speaking of outliers, those little dots or stars hanging out beyond the whiskers? They’re the rebels, the points that don’t quite fit in. Pay attention to them; they could be telling you something important, like a sneaky data error or a groundbreaking discovery.
Now, for a bit of a lean. When your box and whiskers are lopsided, that’s skewness. A plot leaning to the left? It’s left-skewed, meaning more values are on the higher end. Leaning to the right? That’s right-skewed, with more values lounging on the low end. It’s like knowing if your basketball team prefers shooting from the left or right side of the court.
Finally, let’s chat about the overall shape of your Box Plots. Each one has its personality. A tall, skinny box with long whiskers? That’s a varied dataset, full of highs and lows. A short, wide box? Your data’s clustered close together, cozy and snug. Comparing these shapes across plots is like comparing the personalities of your data sets ”“ some are drama queens with lots of ups and downs, and others are chill, staying close to the median.
First off, Box Plots excel at showcasing the median of your data, giving you the skinny on where the center of your dataset lies. But they’re not one-trick ponies; they also lay bare the spread of your data, revealing the range within which the bulk of your values reside. It’s like getting a snapshot of your data’s heart and soul.
Imagine you’re at a track meet, watching runners from different teams. Each team has its strengths, and you’re trying to gauge which team has the most consistent speeds. This is where Box Plots shine, allowing for side-by-side comparisons of different datasets on the same scale. You can easily spot which team (or dataset, in our case) has the tightest grouping of times, indicating consistency, or which one has outliers that might raise eyebrows.
Now, consider you’re trying to sift through a library of books, looking for titles that fall within a certain page range. Box Plots handle large datasets with ease, summarizing thousands of values into a neat, understandable format. You don’t need to flip through every book; the plot gives you the summary you need at a glance.
One of the Box Plot’s superpowers is its robustness in the face of outliers. These plots highlight extreme values without letting them skew the overall picture. It’s like acknowledging that one ultra-marathon runner in a group of 5k enthusiasts without letting their prowess overshadow the achievements of the rest.
Lastly, Box Plots give us a peek into the symmetry of our data. They visually depict whether the data leans more to the left or right of the median, helping identify skewness at a glance. This feature is akin to understanding if your group of friends prefers mystery novels over romance without conducting a detailed survey.
Box and Whisker Plots, while great for spotting outliers and understanding distribution at a glance, might be too simplistic for the rich stories our data wants to tell. Imagine trying to summarize the entire plot of “The Lord of the Rings” in a single tweet. Tricky, right? That’s sometimes what we do to our data with these plots.
With just a handful of data points, a Box and Whisker Plot can feel like using a hammer to swat a fly. It’s overkill and might not give you the insights you’re looking for. It’s like using a chainsaw to carve your Thanksgiving turkey – sure, you can do it, but should you?
Ever tried to read a book with half the pages torn out? That’s the feeling when we lose the nuances in our data by boxing it up. The individual stories of each data point, the nuances, and the deviations – they all get swept under the carpet. It’s a case of “missing the trees for the forest.”
Categorical or discrete data sitting in a Box and Whisker Plot is like a fish out of water – awkward and out of place. These plots thrive on numerical data. Throwing in categories is like adding pineapple to pizza; some people might appreciate it, but it’s certainly not for everyone.
Ever watched a foreign movie without subtitles? That’s the experience for an audience looking at a Box and Whisker Plot without a solid understanding of what they’re seeing. It’s not just about showing the data; it’s about making sure it speaks the same language as your audience. Without this, your well-intended plot might just end up as decorative art.
Box and Whisker Plots are more than just boxes and lines. They’re a window into the soul of your data, showing you the highs, the lows, and everything in between. By mastering these tips, you’ll not only unlock the secrets of your data but also impress your colleagues with your analytical prowess.
The line in the box? That’s your median, the Thanos of your data, perfectly balancing your dataset. If this line skews left or right, your data’s telling you a story of its skewed adventures.
Those points floating beyond the whiskers aren’t mistakes; they’re whispers of extraordinary tales. Investigate these outliers; they could be the heroes or villains in your data’s saga.
Box Plots shine in the lineup. Do you have multiple datasets? . This visual lineup reveals the dramatic differences or surprising similarities in your data’s distribution and central tendencies.
Notice a long whisker? That’s data stretching its legs, indicating a spread-out set. A short box? Your data is tight-knit and cozy in its central values.
Is your Box Plot symmetrical? Congratulations, your data is balanced. If not, it leans towards skewness, hinting at underlying stories worth your detective skills.
Now, for the fun part ”“ the IQR. This range, contained within the box, shows where the middle 50% of your data falls. A smaller box means your data is tight-knit, like a close group of friends. A larger one? More like acquaintances spread far and wide. Use this to gauge the consistency of your data.
We’re going to explore the quirky cousins of the classic Box Plot. Yes, they might seem a bit odd at first glance, but they’re all about giving you deeper insights into your data.
First up, let’s talk about the variable-width Box Plot. Imagine a Box Plot that’s been hitting the gym for a particular reason. These aren’t your run-of-the-mill plots that stand there, displaying the same old data. Nope. The widths of these plots change based on another dataset.
Why? To show you not just the distribution but also the weight of each group in your data. It’s like understanding both the spread of students’ grades and how many students are in each class at a glance. Handy, right?
Next in line, the notched Box Plot, donning its detective hat, is here to help you spot the differences in medians between groups. Picture this: Each box with a little notch, right around the median. When these notches don’t overlap between two plots, it’s a hint, a nudge, suggesting the medians might be statistically different. It’s not conclusive evidence, but it sure does raise an eyebrow (or two).
Finally, let’s wander into the realm of Boxen plots, also known as letter-value plots. These are the “more is more” family members, created for those times when you’re dealing with a huge dataset. Standard Box Plots can get a bit overwhelmed with large data; they might show outliers that aren’t that outlying. Boxen plots? They slice the data into many more quantiles, giving you a finer view of the distribution. It’s like switching from a magnifying glass to a microscope.
Ever wondered how Box Plots stack up against histograms? Think of a Box Plot as your data’s fingerprint ”“ unique, compact, and revealing the essence in a glance.
Histograms? They’re the storytellers, unfolding the tale of your data’s distribution, piece by piece. While Box Plots sketch the outline, histogram graphs fill in the color, offering a detailed view of the data’s spread and skewness. In the showdown of clarity versus detail, it’s your call on the winner.
Now, let’s toss the density plot into the ring. If Box Plots are the minimalist artists of the data visualization world, density plots are their impressionist cousins. While Box Plots give you the no-frills, just-the-facts-ma’am view of your data’s range and outliers, density plots swirl in with gradients of probability, highlighting where your data points love to hang out. It’s the difference between knowing the boundaries and feeling the heartbeat of your dataset.
Enter the violin plot, the Box Plot’s elegant, flamboyant sibling. Both share DNA – the quartiles, the whiskers, the medians – but the violin plot refuses to be constrained, showing off the full distribution of the data with its wide and narrow sections. It’s like comparing a black-tie summary to a full-blown costume gala. The Box Plot gives you the executive summary; the violin plot presents the novel, with all its twists and turns.
Notches around the median in Box Plots can offer a visual representation of the confidence interval for comparing medians between groups. If notches of two plots do not overlap, it suggests a statistically significant difference in the medians. This addition can provide a quick visual check for statistical significance without resorting to formal testing.
To convey additional information, the width of Box Plots can be varied to represent another dimension of the data, such as the size of the group. This variation allows for a more nuanced interpretation of data distribution, emphasizing differences in sample size across groups.
Outliers can distort the interpretation of Box Plots by affecting the calculation of quartiles. One approach is to adjust the plot to include outlier labeling, where extreme values are marked individually on the plot. This method preserves the integrity of the data while providing clarity on its distribution.
Highly skewed data can make Box Plots difficult to interpret. Applying transformations (e.g., logarithmic, square root) can normalize the data, making the Box Plot more representative of the data’s central tendency and variability. It’s crucial to note the transformation applied when interpreting the plot.
Violin plots combine the concept of Box Plots with kernel density estimation to provide more information about the density of the data around different values. These plots can be particularly useful when dealing with multimodal distributions, where a traditional Box Plot might not adequately represent the distribution’s nuances.
The interquartile range (IQR) is a measure of statistical dispersion, or spread, which describes the range of values within which the middle 50% of a data set falls. It is calculated as the difference between the third quartile (Q3) and the first quartile (Q1).
The relationship between Box Plot outliers and the IQR in a Box Plot highlights how compact or spread out the central portion of the data is, and how outliers stand apart from the main cluster of data. This can be particularly useful in identifying skewness in the distribution, where a significant number of outliers in one direction indicate a long tail.
Data is more than numbers; it’s the soul of our decision-making process. Box and Whisker Plots, with their quirky mustaches (I mean, whiskers), help us listen to what the data is trying to say. They’re like the wise old sages of data visualization, offering insights into the vast landscapes of our datasets.
So, the next time you find yourself at the crossroads of data analysis, wondering which path to take, pull out a Box and Whisker Plot. It’ll not only show you the way but also tell you stories about the lands (data) far and wide.
And who knows? You might just find that making informed decisions becomes as easy as pie (but remember, we’re talking about Box Plots here, not pie charts!).
